Intro
Decoupling is a software design term for removing dependencies between modules. According to this concept, the fewer modules depend on other modules, the better the overall management of the codebase.
I will try to show my approach to storing data efficiently in Godot using this concept.
My goal: load data from a JSON file and store it for easy access in the game.
Wikipedia about Coupling.
The Process
Creating a new resource
First, I created a new resource and gave it the name JSON_DB.tres In Godot, resources are great for storing data since the engine only loads them once. Any copy resource will point to the same original resource and will not create a new one in memory.

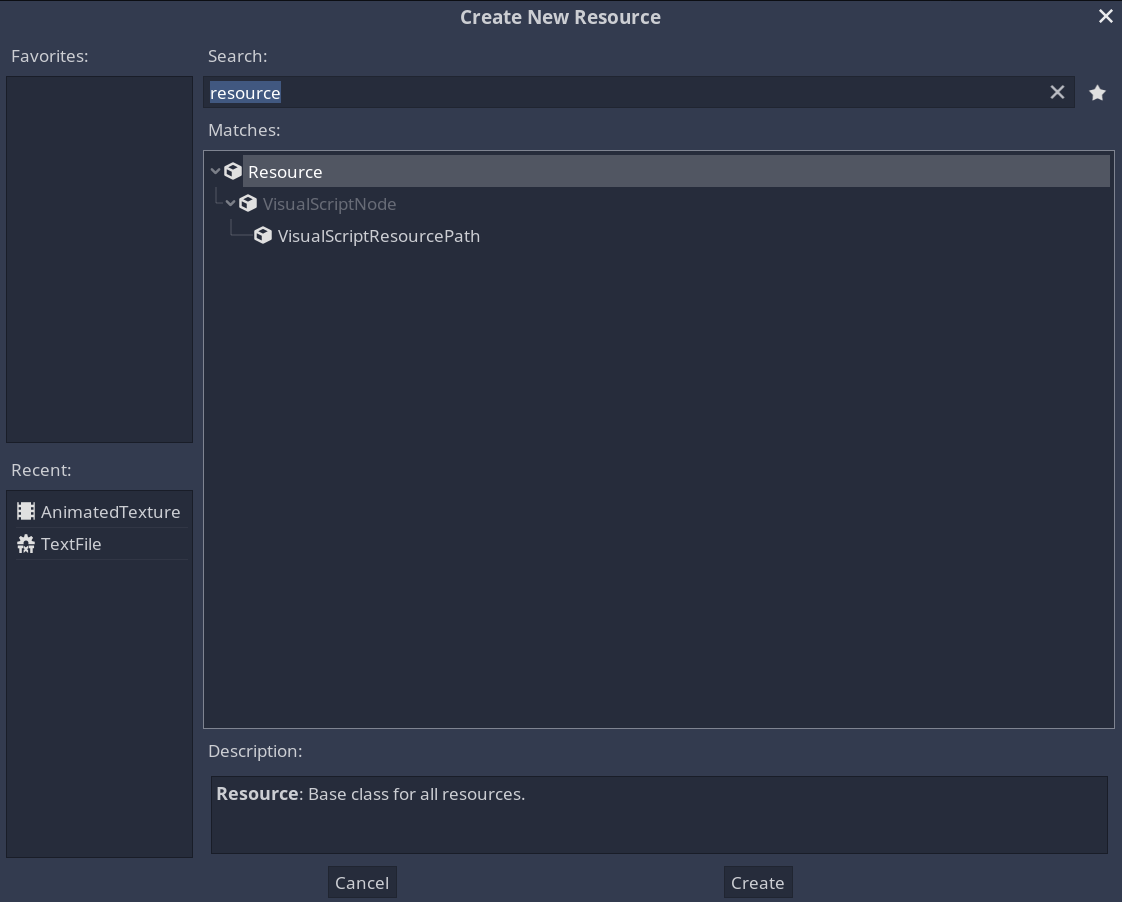

Creating a new resource.
Giving the resource a name.
Now, adding a script to the resource:
Adding a script to the resource.
The Script
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
extends Resource
class_name JSON_DB
# ======== PRIVATE ========
var _database : Dictionary = {}
var _string_to_var : Array = []
# ======== Constructor ========
func _init(json_path="", json_strings_to_var=[]):
# Load JSON from path
var file = File.new()
file.open(json_path, file.READ)
_database = parse_json(file.get_as_text())
file.close()
# Which JSON's strings should be converted to variables
_string_to_var = json_strings_to_var
# ======== PUBLIC ========
func get_dict():
return _database
func get_values_first_key():
var dict_all_keys = _database.keys()
return _database.get(dict_all_keys.front())
func get_values(key):
if _database.keys().has(key):
return _database[key]
return null
func get_nested_values(key, val):
if _database.keys().has(key): # Key (country) exists?
if _database[key].has(val): # Value exists?
# If variable, convert from string
for variable in _string_to_var:
if String(_database[key][val]).find(variable) != -1:
return str2var(_database[key][val])
return _database[key][val]
return null
Some points:
1) The database is a dictionary. It will contain unique values for each country.
2) The Constructor loads the JSON to this dictionary and converts variables specified in _string_to_var, such as Color(), to variables, as I will show below.
3) In the Public section there are several methods to access this dictionary. For now, I assume all the data I need is in this JSON file. Later I will add functions to set and change data.
Since JSON_DB will be used as a base for various data structures, I will create a dedicated database for the countries. Here’s my Countries_DB.gd:
1
2
3
4
5
extends "res://Resources/Database/JSON_DB/JSON_DB.gd"
class_name Countries_DB
func _init(json_path="", json_strings_to_var=[]).(json_path, json_strings_to_var):
pass
The syntax for _init is derived from inner classes in Godot.
The JSON File (countries.json)
1
2
3
4
5
6
7
8
9
10
{
"Brazil": {
"color": "Color(0,1,0)",
"stat": 1
},
"Chile": {
"color": "Color(1,1,1)",
"stat": 2
}
}
In this JSON file, there’s a color variable. In the script earlier, get_nested_values will check if we specified any variables in _string_to_var (actually, the constructor does it) and if so, it will convert them to variables using the built-in str2var.
Testing using test-driven-development.
GUT is a test-driven development tool for Godot. It works well, and I will use it to test this script.
The test-driven script:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
extends "res://addons/gut/test.gd"
var _file_path = "res://JSON_FILES/countries.json"
var _countries_DB = null
var _values_first_line = null
var _key_first_country = null
var _key_second_country = null
var _values_second_country = null
var _color_first_country = null
var _color_second_country = null
func before_each():
_values_first_line = "{color:Color(0,1,0), stat:1}"
_key_first_country = "Brazil"
_key_second_country = "Chile"
_values_second_country = "{color:Color(1,1,1), stat:2}"
_color_first_country = Color(0,1,0)
_color_second_country = Color(1,1,1)
# Here I specifies the variables which should be converted (Color)
_countries_DB = Countries_DB.new(_file_path, ["Color",])
func after_each():
pass
func test_creating_Countries_instance():
assert_not_null(_countries_DB, "Should not be null")
func test_get_dict_not_null():
assert_not_null(_countries_DB.get_dict())
func test_get_dict_returns_dict():
assert_typeof(_countries_DB.get_dict(), TYPE_DICTIONARY)
func test_DB_first_line():
var values_first_line = String(_countries_DB.get_values_first_key())
assert_eq(values_first_line, _values_first_line)
func test_DB_second_line():
var values_second_country = _countries_DB.get_values(_key_second_country)
values_second_country = String(values_second_country)
assert_eq(values_second_country, _values_second_country)
func test_DB_first_line_nested_value():
var color_first_country = _countries_DB.get_nested_values(_key_first_country, "color")
assert_eq(color_first_country, _color_first_country)
func test_DB_second_line_nested_value():
var color_second_country = _countries_DB.get_nested_values(_key_second_country, "color")
assert_eq(color_second_country, _color_second_country)
